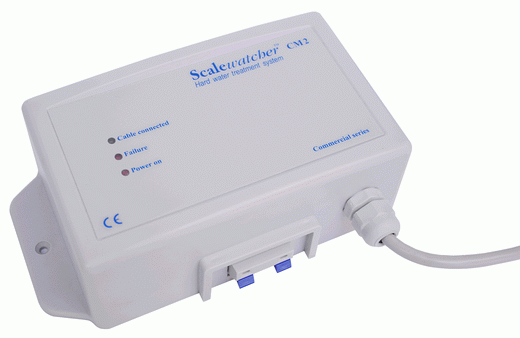

Technical specifications CM series, indoors
Mains voltage:110-
Power: Less than 16 Watt depending on model
Mains cable: Three meter (10 ft) with molded mains plug
Overload protection: Internal fuse
Signal cable: One core and enough length to make the coil
Controls: "Power On", "Cable connected" and Failure LEDs
Electrical Standard: Scalewatcher conforms to the low voltage directive of the EC for house hold use.
Ingress protection: The units are hermetically sealed to IP54 (NEMA2) and can be operated in damp surroundings.
Dimensions: 7.8”x4.5”x2.5”/200x115x64 mm3
Weight: 32 OZ/0.9 kg
To be used for pipe diameters up to 4”/100 mm
Suitable for all pipe materials
The following models are available:
CM2: 2”, CM4: 4”
Manufacturer's guarantee: Five years
